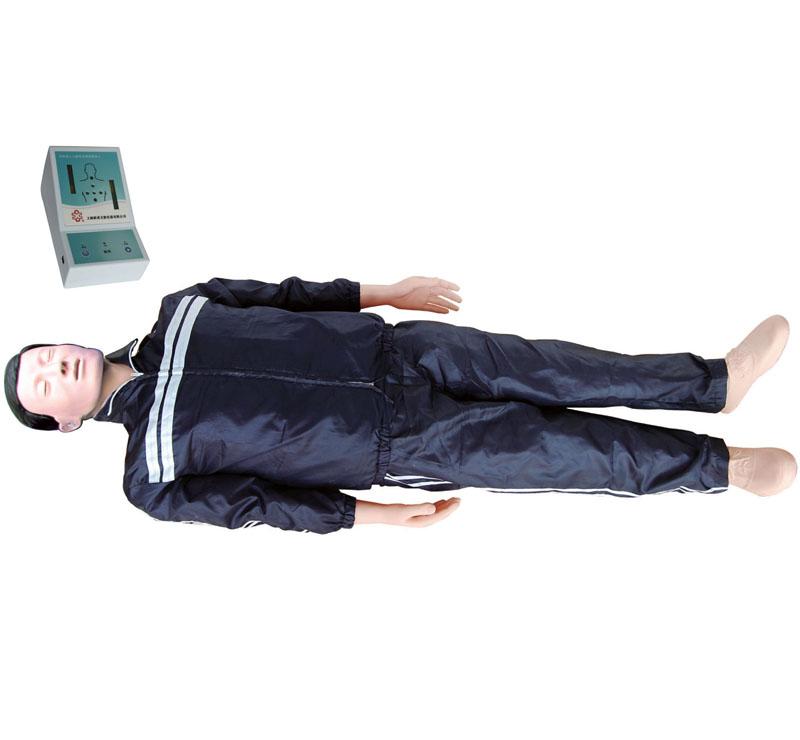

GA-406-1 / 406A-1 Whole Body Basic CPR Manikin Style 100 (Male / Female)

Description

Implement standard: AHA (American Heart Association) guideline for CPR

Feature:
CPR manikin feature:
1) Clearly anatomic characteristic, realistic touch feeling and lifelike skin color, vivid appearance.
2) Simulate vital signs.
(a)Pupil state: contrast observation of pupils, one is dilated, the other one is contracted.
(b) Carotid artery response: simulate carotid artery pulse.
3) Open airway.
4) Can perform artificial breathing and external cardiac compression.

CPR instrument feature:
1) Available CPR training.
2) Electronic monitoring of compression site.
3) Indicators show inflation volume, correct inflation volume: 800-1200ml.
(a)Insufficient inflation volume, yellow indicator.
(b)Proper inflation volume, green indicator.
(c)Excessive inflation volume, red indicator.
4) Indicators show compression depth: correct compression depth: 4-5cm.
(a)Insufficient compression depth, yellow indicator.
(b)Proper compression depth, green indicator.
5) Voice Prompt.
6) Operation rate: ≥100 times/min.
7) Operation cycle: 2 valid inflation after 30 valid compression, 5 cycles.
8) Set the operating time, values in seconds.
9) Result Printing: XC-406-2/XC-406-5.
Packing: 1pcs/carton, 95x34x58cm, 21kgs
