Description
|
|
|
|
|
|---|---|---|---|
Multi-use Data Logger
|
Wide Temperature Range
|

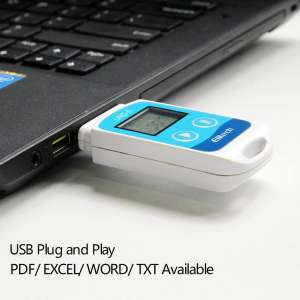

USB Design
|
6-month Battery Life
|

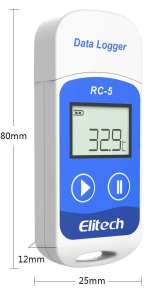

LCD Visual Display
LCD visual display, interface is simple and easy to use, easy to operate, convenient to check your data at any time.
1. Over temperature alarm & upper/lower limits can be set
2. MAX/MIN values available
3. Record interval: 10s~24h adjustable
Technical Parameters
1. Sensor: Internal NTC thermal resistor, no external sensor supported
2. Communication interface: USB
3. Power supply: CR2032 battery
4. CE certificate
5. IP67 protection grade
6. Multiple use: data can be removed and start a new round by our software
7. Data could be queried, saved, printed and exported in Excel/PDF format.
8. Package Included: 1 x Elitech RC-5 Data Logger; 1 x CR2032 Battery; 1 x User Manua
Free Elitechlog Software for Windows&macOS
Firstly, please download and install the software instructed on the user manual.
Meanings of the Setting Parameters:
Log Clock: Not configurable. But the time will sync with that on the computer after our user click the Save Parameter button under the Parameter tab.
S/N: Not configurable.
Trip Description: Configurable. The info entered here will be shown on the report, it can be used to differentiate one logger from another.
Log interval: Configurable. Means how often our user want the logger to perform a reading, it can be 10S, 1minute or 1day.
Start Delay(H): Configurable. Means after you press the button on the logger, how long it would wait to officially start logging.
Press button: Configurable. Means after we press the triangle button for 4 seconds on the logger to start logging.
Temperature Unit: Configurable.Celsius or Fahrenheit.
High/Low limit: Configurable.The upper and lower alarming point you want to set.
